Enable local fulfillment for Cloud-to-cloud integrations

1. Before you begin

Smart home integrations allow the Google Assistant to control connected devices in users' homes. To build a Cloud-to-cloud integration, you need to provide a cloud webhook endpoint capable of handling smart home intents. For instance, when a user says, "Hey Google, turn on the lights,'' the Assistant sends the command to your cloud fulfillment to update the state of the device.

The Local Home SDK enhances your smart home integration by adding a local path to route smart home intents directly to a Google Home device, which enhances reliability and reduces latency in processing users' commands. It allows you to write and deploy a local fulfillment app in TypeScript or JavaScript that identifies devices and executes commands on any Google Home smart speaker or Google Nest smart display. Your app then communicates directly with users' existing smart devices over the local area network by using existing standard protocols to fulfill commands.

Prerequisites

• Create a Cloud-to-cloud integration developer guide
• Smart Home Washer codelab
• Local fulfillment developer guide

What you'll build

In this codelab, you will deploy a previously built smart home integration with Firebase, then apply a scan configuration in the Developer Console, and build a local app using TypeScript to send commands written in Node.js to a virtual washer device.

What you'll learn

• How to enable and configure local fulfillment in the Developer Console.
• How to use the Local Home SDK to write a local fulfillment app.
• How to debug the local fulfillment app loaded on the Google Home speaker or Google Nest smart display.

What you'll need

• The latest version of Google Chrome
• An iOS or Android device with the Google Home app
• A Google Home smart speaker or Google Nest smart display
• Node.js version 10.16 or later
• A Google Account
• A Google Cloud billing account

2. Getting started

Enable Activity controls

In order to use the Google Assistant, you must share certain activity data with Google. The Google Assistant needs this data to function properly; however, the requirement to share data is not specific to the SDK. To share this data, create a Google account if you don't already have one. You can use any Google account—it does not need to be your developer account.

Open the Activity Controls page for the Google account that you want to use with the Assistant.

Ensure the following toggle switches are enabled:

• Web & App Activity - In addition, be sure to select the Include Chrome history and activity from sites, apps, and devices that use Google services checkbox.
• Device Information
• Voice & Audio Activity

Create a Cloud-to-cloud Integration project

1. Go to the Developer Console.
2. Click Create Project, enter a name for the project, and click Create Project.

Select the Cloud-to-cloud Integration

On the Project Home in the Developer Console, select Add cloud-to-cloud integration under Cloud-to-cloud.

Install the Firebase CLI

The Firebase Command Line Interface (CLI) will allow you to serve your web apps locally and deploy your web app to Firebase hosting.

To install the CLI, run the following npm command from the terminal:

npm install -g firebase-tools

To verify that the CLI has been installed correctly, run:

firebase --version

Authorize the Firebase CLI with your Google account by running:

firebase login

Enable the HomeGraph API

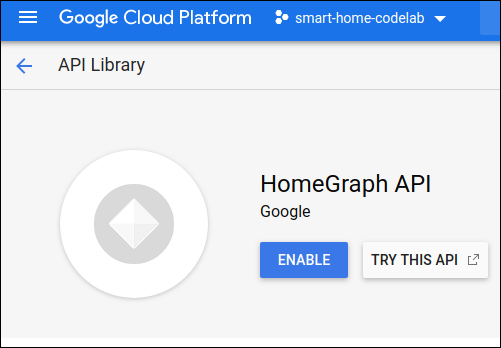

The HomeGraph API enables the storage and querying of devices and their states within a user's Home Graph. To use this API, you must first open the Google Cloud console and enable the HomeGraph API.

In the Google Cloud console, make sure to select the project that matches your integration's <project-id>. Then, in the API Library screen for the HomeGraph API, click Enable.

3. Run the starter app

Now that you set up your development environment, you can deploy the starter project to verify everything is configured properly.

Get the source code

Click the following link to download the sample for this codelab on your development machine:

file_downloadDownload source code

...or you can clone the GitHub repository from the command line:

git clone https://github.com/google-home/smarthome-local.git

About the project

The starter project contains the following subdirectories:

• public—Frontend web UI to control and monitor the smart washer
• functions—Cloud functions implementing cloud fulfillment for the Cloud-to-cloud integration
• local—Skeleton local fulfillment app project with intent handlers stubbed in index.ts

The provided cloud fulfillment includes the following functions in index.js:

• fakeauth—Authorization endpoint for account linking
• faketoken—Token endpoint for account linking
• smarthome—Smart home intent fulfillment endpoint
• reportstate—Invokes the HomeGraph API on device state changes
• updateDevice—Endpoint used by the virtual device to trigger Report State

Connect to Firebase

Navigate to the app-start directory, then set up the Firebase CLI with your Cloud-to-cloud integration project:

cd app-start
firebase use <project-id>

Configure Firebase project

Initialize a Firebase project.

firebase init

Select the CLI features, Realtime Database, Functions, and the Hosting feature that includes Firebase Hosting.

? Which Firebase CLI features do you want to set up for this directory? Press Space to select features, then
 Enter to confirm your choices.
❯◉ Realtime Database: Configure a security rules file for Realtime Database and (optionally) provision default instance
 ◯ Firestore: Configure security rules and indexes files for Firestore
 ◉ Functions: Configure a Cloud Functions directory and its files
 ◉ Hosting: Configure files for Firebase Hosting and (optionally) set up GitHub Action deploys
 ◯ Hosting: Set up GitHub Action deploys
 ◯ Storage: Configure a security rules file for Cloud Storage
 ◯ Emulators: Set up local emulators for Firebase products
 ◯ Remote Config: Configure a template file for Remote Config
 ◯ Extensions: Set up an empty Extensions manifest

This will initialize the necessary APIs and features for your project.

When prompted, initialize Realtime Database. You can use the default location for the database instance.

? It seems like you haven't initialized Realtime Database in your project yet. Do you want to set it up?
Yes

? Please choose the location for your default Realtime Database instance:
us-central1

Since you are using the starter project code, choose the default file for the Security rules, and ensure you don't overwrite the existing database rules file.

? File database.rules.json already exists. Do you want to overwrite it with the Realtime Database Security Rules for <project-ID>-default-rtdb from the Firebase Console?
No

If you are reinitializing your project, select Overwrite when asked if you want to initialize or overwrite a codebase.

? Would you like to initialize a new codebase, or overwrite an existing one?
Overwrite

When configuring your Functions, you should use the default files, and ensure you don't overwrite the existing index.js and package.json files in the project sample.

? What language would you like to use to write Cloud Functions?
JavaScript

? Do you want to use ESLint to catch probable bugs and enforce style?
No

? File functions/package.json already exists. Overwrite?
No

? File functions/index.js already exists. Overwrite?
No

If you are reinitializing your project, select No when asked if you want to initialize or overwrite functions/.gitignore.

? File functions/.gitignore already exists. Overwrite?
No

? Do you want to install dependencies with npm now?
Yes

Finally, configure your Hosting setup to use the public directory in the project code, and use the existing index.html file. Select No when asked to use ESLint.

? What do you want to use as your public directory?
public

? Configure as a single-page app (rewrite all urls to /index.html)?
Yes

? Set up automatic builds and deploys with GitHub?
No

? File public/index.html already exists. Overwrite?
 No

If ESLint was accidentally enabled, there are two methods available to disable it:

1. Using the GUI, go to the ../functions folder under the project, select the hidden file .eslintrc.js and delete it. Do not mistake it for the similarly named .eslintrc.json.
2. Using the command line:

   cd functions
   rm .eslintrc.js


To ensure that you have a correct and complete Firebase configuration, copy the firebase.json file from the washer-done directory to the washer-start directory, overwriting the one in washer-start.

In the washer-start directory:

cp -vp ../washer-done/firebase.json .

Deploy to Firebase

Now that you have installed the dependencies and configured your project, you are ready to run the app for the first time.

firebase deploy

This is the console output you should see:

...

✔ Deploy complete!

Project Console: https://console.firebase.google.com/project/<project-id>/overview
Hosting URL: https://<project-id>.web.app

This command deploys a web app, along with several Cloud Functions for Firebase.

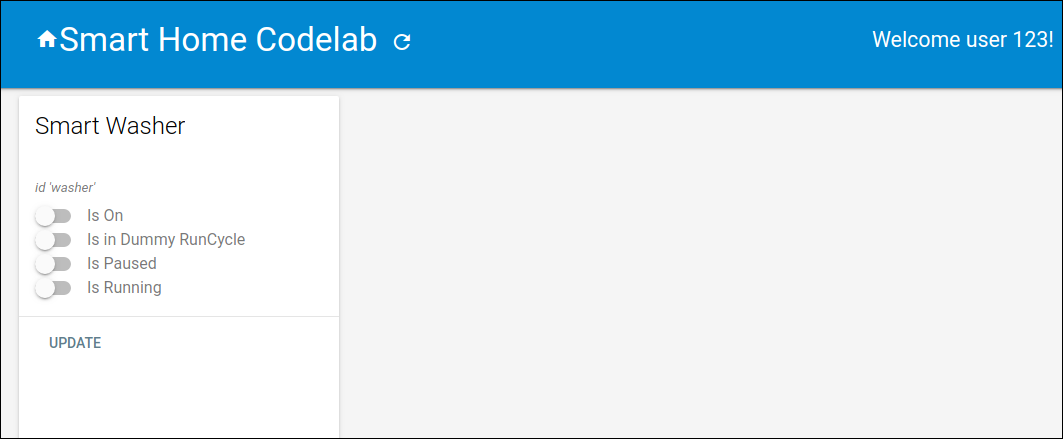

Open the Hosting URL in your browser (https://<project-id>.web.app) to view the web app. You will see the following interface:

This web UI represents a third-party platform to view or modify device states. To begin populating your database with device information, click UPDATE. You won't see any changes on the page, but the current state of your washer will be stored in the database.

Now it's time to connect the cloud service you've deployed to the Google Assistant using the Developer Console.

Configure your Developer Console project

On the Develop tab, add a Display Name for your interaction. This name will appear in the Google Home app.

Under App branding, upload a png file for the app icon, sized 144 x 144px, and named .png.

To enable Account linking use these account linking settings:

Under Cloud fulfillment URL, enter the URL for your cloud function that provides fulfillment for the smart home intents.

https://us-central1--cloudfunctions.net/smarthome

Click Save to save your project configuration, then click Next: Test to enable testing on your project.

Now you can begin implementing the webhooks necessary to connect the device state with the Assistant.

Link to Google Assistant

In order to test your Cloud-to-cloud integration, you need to link your project with a Google account. This enables testing through Google Assistant surfaces and the Google Home app that are signed in to the same account.

1. On your phone, open the Google Assistant settings. Note that you should be logged in as the same account as in the console.
2. Navigate to Google Assistant > Settings > Home Control (under Assistant).
3. Click the search icon in the upper right.
4. Search for your test app using the [test] prefix to find your specific test app.
5. Select that item. The Google Assistant will then authenticate with your service and send a SYNC request, asking your service to provide a list of devices for the user.

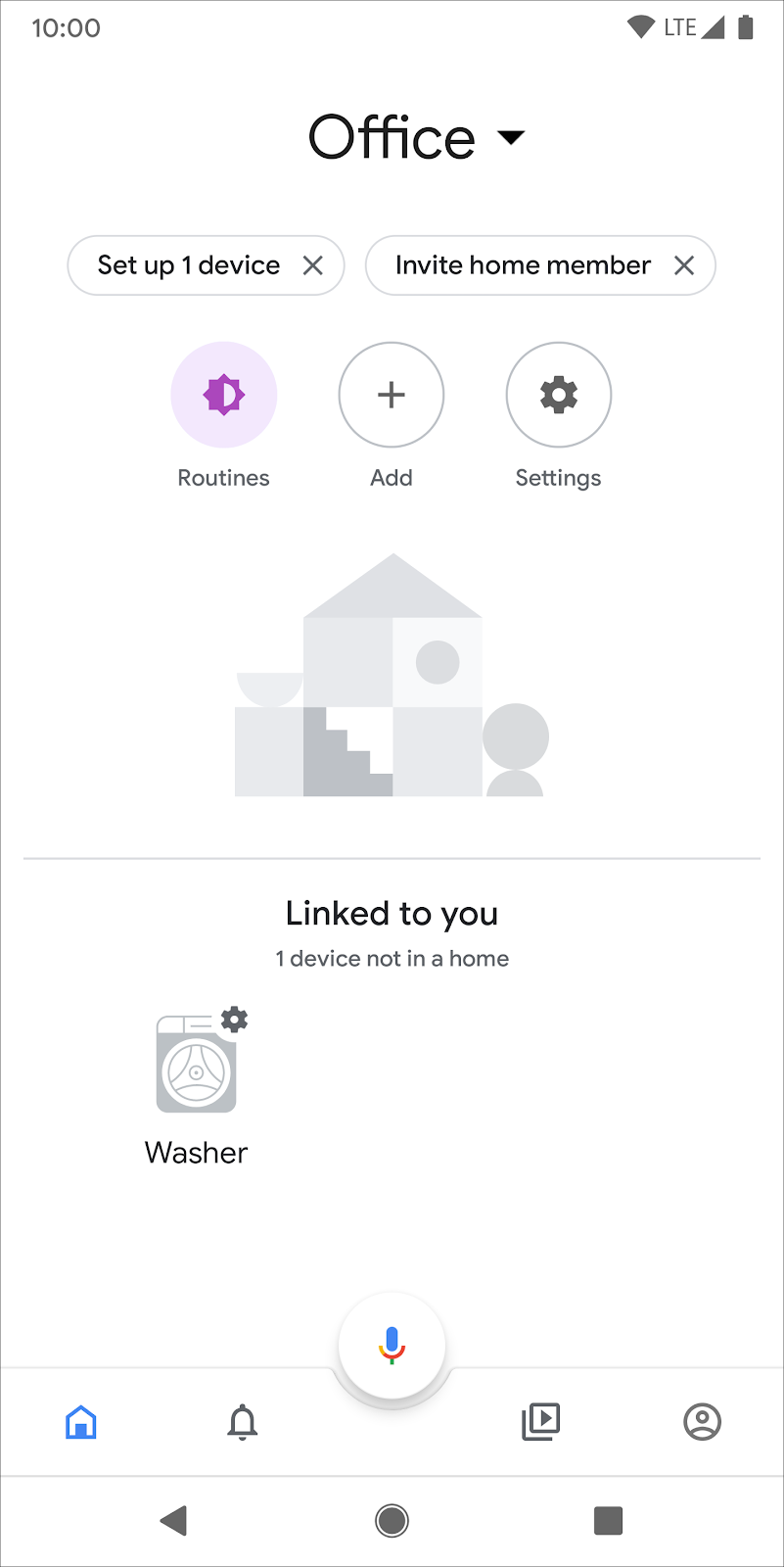

Open the Google Home app and verify that you can see your washer device.

Verify that you can control the washer using voice commands in the Google Home app. You should also see the device state change in the frontend web UI of your cloud fulfillment.

Now you can begin adding local fulfillment to your integration.

4. Update cloud fulfillment

To support local fulfillment, you need to add a new per-device field called otherDeviceIds to the cloud SYNC response containing a unique local identifier for the device. This field also indicates the ability to locally control that device.

Add the otherDeviceIds field to the SYNC response as shown in the following code snippet:

functions/index.js

app.onSync((body) => {
  return {
    requestId: body.requestId,
    payload: {
      agentUserId: '123',
      devices: [{
        id: 'washer',
        type: 'action.devices.types.WASHER',
        traits: [ ... ],
        name: { ... },
        deviceInfo: { ... },
        willReportState: true,
        attributes: {
          pausable: true,
        },
        otherDeviceIds: [{
          deviceId: 'deviceid123',
        }],
      }],
    },
  };
});

Deploy the updated project to Firebase:

firebase deploy --only functions

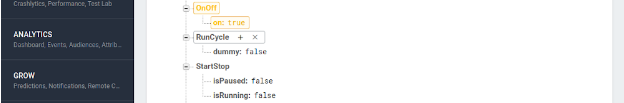

After deployment completes, navigate to the web UI and click the Refresh button in the toolbar. This triggers a Request Sync operation so that the Assistant receives the updated SYNC response data.

5. Configure local fulfillment

In this section, you will add the necessary configuration options for local fulfillment to your Cloud-to-cloud integration. During development, you will publish the local fulfillment app to Firebase Hosting, where the Google Home device can access and download it.

In the Developer Console, select Develop > Actions and find the Configure local home SDK section. Enter the following URL into the test URL field, insert your project ID, and click Save:

https://<project-id>.web.app/local-home/index.html

Next, we need to define how the Google Home device should discover the local smart devices. The Local Home platform supports several protocols for device discovery, including mDNS, UPnP, and UDP broadcast. You will use UDP broadcast to discover the smart washer.

Click New scan config under Device scan configuration to add a new scan configuration. Select UDP as the protocol, and fill in the following attributes:

Finally, click Save at the top of the window to publish your changes.

6. Implement local fulfillment

You will develop your local fulfillment app in TypeScript using the Local Home SDK typings package. Look at the skeleton provided in the starter project:

local/index.ts

/// <reference types="@google/local-home-sdk" />

import App = smarthome.App;
import Constants = smarthome.Constants;
import DataFlow = smarthome.DataFlow;
import Execute = smarthome.Execute;
import Intents = smarthome.Intents;
import IntentFlow = smarthome.IntentFlow;

...

class LocalExecutionApp {

  constructor(private readonly app: App) { }

  identifyHandler(request: IntentFlow.IdentifyRequest):
      Promise<IntentFlow.IdentifyResponse> {
    // TODO: Implement device identification
  }

  executeHandler(request: IntentFlow.ExecuteRequest):
      Promise<IntentFlow.ExecuteResponse> {
    // TODO: Implement local fulfillment
  }

  ...
}

const localHomeSdk = new App('1.0.0');
const localApp = new LocalExecutionApp(localHomeSdk);
localHomeSdk
  .onIdentify(localApp.identifyHandler.bind(localApp))
  .onExecute(localApp.executeHandler.bind(localApp))
  .listen()
  .then(() => console.log('Ready'))
  .catch((e: Error) => console.error(e));

The core component of local fulfillment is the smarthome.App class. The starter project attaches handlers for the IDENTIFY and EXECUTE intents, then calls the listen() method to inform Local Home SDK that the app is ready.

Add the IDENTIFY handler

The Local Home SDK triggers your IDENTIFY handler when the Google Home device discovers unverified devices on the local network based on the scan configuration provided in the Developer Console.

Meanwhile, the platform invokes the identifyHandler with the resulting scan data when Google discovers a matching device. In your app, scanning takes place using a UDP broadcast and the scan data provided to the IDENTIFY handler includes the response payload sent by the local device.

The handler returns an IdentifyResponse instance containing a unique identifier for the local device. Add the following code to your identifyHandler method to process the UDP response coming from the local device and determine the appropriate local device ID:

local/index .ts

identifyHandler(request: IntentFlow.IdentifyRequest):
    Promise<IntentFlow.IdentifyResponse> {
  console.log("IDENTIFY intent: " + JSON.stringify(request, null, 2));

  const scanData = request.inputs[0].payload.device.udpScanData;
  if (!scanData) {
    const err = new IntentFlow.HandlerError(request.requestId,
        'invalid_request', 'Invalid scan data');
    return Promise.reject(err);
  }

  // In this codelab, the scan data contains only local device id.
  const localDeviceId = Buffer.from(scanData.data, 'hex');

  const response: IntentFlow.IdentifyResponse = {
    intent: Intents.IDENTIFY,
    requestId: request.requestId,
    payload: {
      device: {
        id: 'washer',
        verificationId: localDeviceId.toString(),
      }
    }
  };
  console.log("IDENTIFY response: " + JSON.stringify(response, null, 2));

  return Promise.resolve(response);
}

Note that the verificationId field must match one of the otherDeviceIds values in your SYNC response, which flags the device as available for local fulfillment in the user's Home Graph. After Google finds a match, that device is considered verified and ready for local fulfillment.

Add the EXECUTE handler

The Local Home SDK triggers your EXECUTE handler when a device that supports local fulfillment receives a command. The content of the local intent is equivalent to the EXECUTE intent sent to your cloud fulfillment, so the logic for locally processing the intent resembles how you handle it in the cloud.Actions

The app can use TCP/UDP sockets or HTTP(S) requests to communicate with local devices. In this codelab, HTTP serves as the protocol used to control the virtual device. The port number is defined in index.ts as the SERVER_PORT variable.

Add the following code to your executeHandler method to process incoming commands and send them to the local device over HTTP:

local/index.ts

executeHandler(request: IntentFlow.ExecuteRequest):
    Promise<IntentFlow.ExecuteResponse> {
  console.log("EXECUTE intent: " + JSON.stringify(request, null, 2));

  const command = request.inputs[0].payload.commands[0];
  const execution = command.execution[0];
  const response = new Execute.Response.Builder()
    .setRequestId(request.requestId);

  const promises: Array<Promise<void>> = command.devices.map((device) => {
    console.log("Handling EXECUTE intent for device: " + JSON.stringify(device));

    // Convert execution params to a string for the local device
    const params = execution.params as IWasherParams;
    const payload = this.getDataForCommand(execution.command, params);

    // Create a command to send over the local network
    const radioCommand = new DataFlow.HttpRequestData();
    radioCommand.requestId = request.requestId;
    radioCommand.deviceId = device.id;
    radioCommand.data = JSON.stringify(payload);
    radioCommand.dataType = 'application/json';
    radioCommand.port = SERVER_PORT;
    radioCommand.method = Constants.HttpOperation.POST;
    radioCommand.isSecure = false;

    console.log("Sending request to the smart home device:", payload);

    return this.app.getDeviceManager()
      .send(radioCommand)
      .then(() => {
        const state = {online: true};
        response.setSuccessState(device.id, Object.assign(state, params));
        console.log(`Command successfully sent to ${device.id}`);
      })
      .catch((e: IntentFlow.HandlerError) => {
        e.errorCode = e.errorCode || 'invalid_request';
        response.setErrorState(device.id, e.errorCode);
        console.error('An error occurred sending the command', e.errorCode);
      });
  });

  return Promise.all(promises)
    .then(() => {
      return response.build();
    })
    .catch((e) => {
      const err = new IntentFlow.HandlerError(request.requestId,
          'invalid_request', e.message);
      return Promise.reject(err);
    });
}

Compile the TypeScript app

Navigate to the local/ directory and run the following commands to download the TypeScript compiler and compile the app:

cd local
npm install
npm run build

This compiles the index.ts (TypeScript) source and places the following contents into the public/local-home/ directory:

• bundle.js—Compiled JavaScript output containing the local app and dependencies.
• index.html—Local hosting page used to serve the app for on-device testing.

Deploy the test project

Deploy the updated project files to Firebase Hosting so that you can access them from the Google Home device.

firebase deploy --only hosting

7. Start the smart washer

Now it's time to test the communication between your local fulfillment app and the smart washer! The codelab starter project includes a virtual smart washer—written in Node.js—which simulates a smart washer that users can locally control.

Configure the device

You need to configure the virtual device to use the same UDP parameters that you applied to the scan configuration for device discovery in the Developer Console. Additionally, you need to tell the virtual device which local device ID to report and the Cloud-to-cloud integration's project ID to use for Report State events when the device state changes.

Start the device

Navigate to the virtual-device/ directory and run the device script, passing the configuration parameters as arguments:

cd virtual-device
npm install
npm start -- \
  --deviceId=deviceid123 --projectId=<project-id> \
  --discoveryPortOut=3311 --discoveryPacket=HelloLocalHomeSDK

Verify that the device script runs with the expected parameters:

(...): UDP Server listening on 3311
(...): Device listening on port 3388
(...): Report State successful

8. Debug the TypeScript app

In the following section, you will verify that the Google Home device can properly scan, identify, and send commands to the virtual smart washer over the local network. You can use Google Chrome Developer Tools to connect to the Google Home device, view the console logs, and debug the TypeScript app.

Connect Chrome Developer Tools

To connect the debugger to your local fulfillment app, follow these steps:

1. Make sure that you linked your Google Home device to a user with permission to access the Developer Console project.
2. Reboot your Google Home device, which enables it to get the URL of your HTML as well as the scan configuration that you put in the Developer Console.
3. Launch Chrome on your development machine.
4. Open a new Chrome tab and enter chrome://inspect in the address field to launch the inspector.

You should see a list of devices on the page and your app URL should appear under the name of your Google Home device.

Launch the inspector

Click Inspect under your app URL to launch Chrome Developer Tools. Select the Console tab and verify that you can see the content of IDENTIFY intent printed by your TypeScript app.

This output means that your local fulfillment app successfully discovered and identified the virtual device.

Test local fulfillment

Send commands to your device using the touch controls in the Google Home app or through voice commands to the Google Home device, such as:

"Hey Google, turn on my washer."

"Hey Google, start my washer."

"Hey Google, stop my washer."

This should trigger the platform to send an EXECUTE intent to your TypeScript app.

Verify that you can see the local smart washer state change with each command.

...
***** The washer is RUNNING *****
...
***** The washer is STOPPED *****

9. Congratulations

Congratulations! You used the Local Home SDK to integrate local fulfillment into a Cloud-to-cloud integration.

Learn more

Here are some additional things you can try:

• Change the scan configuration and make it work. For example, try using a different UDP port or discovery packet.
• Modify the virtual smart device codebase to run on an embedded device—such as a Raspberry Pi—and use LEDs or a display to visualize the current state.
