Google Thread Credentials API による Thread ネットワークの共有

コレクションでコンテンツを整理 必要に応じて、コンテンツの保存と分類を行います。

$ pip install dbus-python shlex json

$  sudo python credentials_server.py 8081
serving at port 8081

PUT /node/dataset/pending
Host: <IP>:8081
ContentType: "application/json"
acceptMimeType: "application/json"
...
{
        "ActiveDataset": "<TLV encoded new Thread Dataset>"
"PendingTimestamp": {
        "Seconds": <Unix timestamp in seconds>,
        "Ticks": 0,
        "Authoritative": false
},
"Delay": 10000 // in milliseconds
}

GET /node/dataset/active
Host: <IP>:8081
ContentType = "application/json"
acceptMimeType = "text/plain"
...
<TLV encoded Thread Dataset>

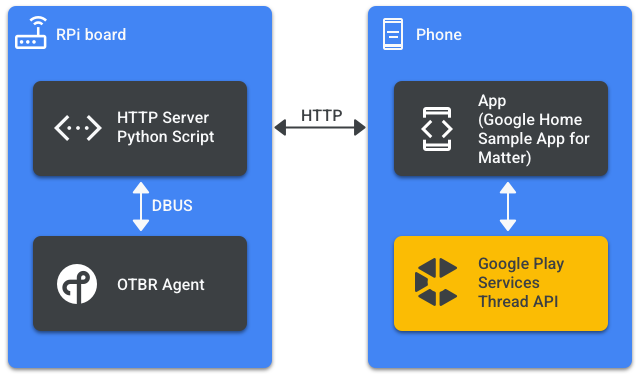

# D-BUS interface
def call_dbus_method(interface, method_name, *arguments):
    bus = dbus.SystemBus()
    obj = bus.get_object('io.openthread.BorderRouter.wpan0', '/io/openthread/BorderRouter/wpan0')
    iface = dbus.Interface(obj, interface)
    method = getattr(iface, method_name)
    res = method(*arguments)
    return res

def get_dbus_property(property_name):
    return call_dbus_method('org.freedesktop.DBus.Properties', 'Get', 'io.openthread.BorderRouter',
                                 property_name)

def set_dbus_property(property_name, property_value):
    return call_dbus_method('org.freedesktop.DBus.Properties', 'Set', 'io.openthread.BorderRouter',
                                 property_name, property_value)

$ sudo dbus-send --system --dest=io.openthread.BorderRouter.wpan0 \
        --type=method_call --print-reply /io/openthread/BorderRouter/wpan0 \
        org.freedesktop.DBus.Introspectable.Introspect

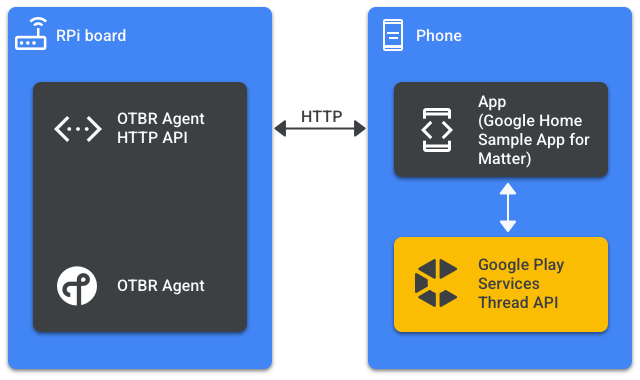

$ REST_API=1 INFRA_IF_NAME=wlan0 ./script/setup

$ sudo systemctl restart otbr-agent.service

$ git clone https://github.com/google-home/sample-apps-for-matter-android.git

/**

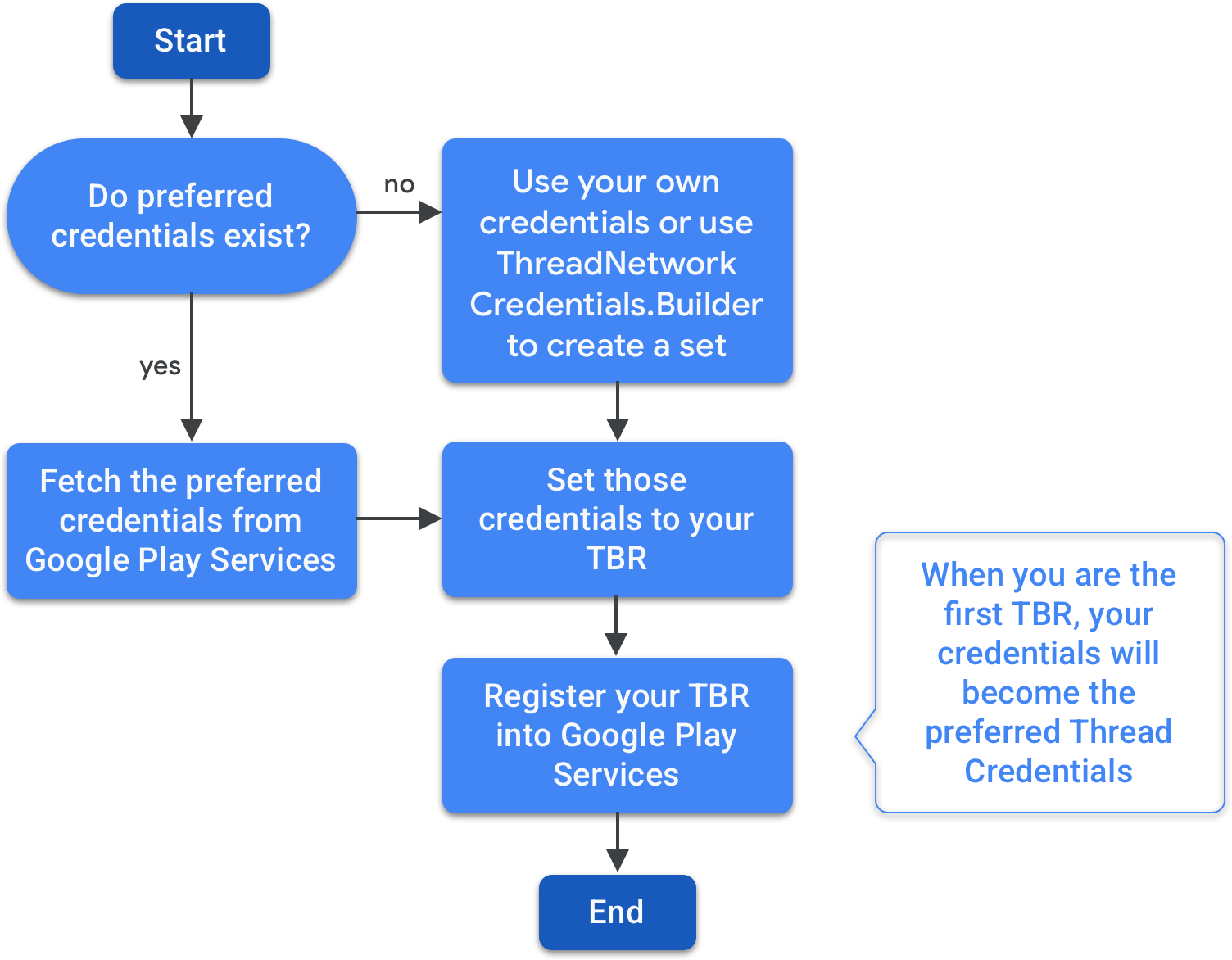

* Prompts whether credentials exist in storage or not. Consent from user is not necessary
*/

fun doGPSPreferredCredsExist(activity: FragmentActivity) {
 try {
   // Uses the ThreadNetwork interface for the preferred credentials, adding
   // a listener that will receive an intentSenderResult. If that is NULL,
   // preferred credentials don't exist. If that isn't NULL, they exist.
   // In this case we'll not use it.

   ThreadNetwork.getClient(activity).preferredCredentials.addOnSuccessListener { intentSenderResult ->
     intentSenderResult.intentSender?.let { intentSender ->
       ToastTimber.d("threadClient: preferred credentials exist", activity)
       // don't post the intent on `threadClientIntentSender` as we do when
       // we really want to know which are the credentials. That will prompt a
       // user consent. In this case we just want to know whether they exist
     } ?: ToastTimber.d(
       "threadClient: no preferred credentials found, or no thread module found", activity
     )
   }.addOnFailureListener { e: Exception ->
     Timber.d("ERROR: [${e}]")
   }
 } catch (e: Exception) {
   ToastTimber.e("Error $e", activity)
 }
}

viewModel.threadClientIntentSender.observe(viewLifecycleOwner) { sender ->
 Timber.d(
   "threadClient: intent observe is called with [${intentSenderToString(sender)}]"
 )
 if (sender != null) {
   Timber.d("threadClient: Launch GPS activity to get ThreadClient")
   threadClientLauncher.launch(IntentSenderRequest.Builder(sender).build())
   viewModel.consumeThreadClientIntentSender()
 }
}

threadClientLauncher =
 registerForActivityResult(ActivityResultContracts.StartIntentSenderForResult()) { result ->
   if (result.resultCode == RESULT_OK) {
     val threadNetworkCredentials =
       ThreadNetworkCredentials.fromIntentSenderResultData(result.data!!)
     viewModel.threadPreferredCredentialsOperationalDataset.postValue(
       threadNetworkCredentials
     )
   } else {
     val error = "User denied request."
     Timber.d(error)
     updateThreadInfo(null, "")
   }
 }

/**
* Last step in setting the GPS thread credentials of a TBR
*/
private fun associateGPSThreadCredentialsToThreadBorderRouterAgent(
 credentials: ThreadNetworkCredentials?,
 activity: FragmentActivity,
 threadBorderAgent: ThreadBorderAgent,
) {
 credentials?.let {
   ThreadNetwork.getClient(activity).addCredentials(threadBorderAgent, credentials)
     .addOnSuccessListener {
       ToastTimber.d("threadClient: Credentials added", activity)
     }.addOnFailureListener { e: Exception ->
       ToastTimber.e("threadClient: Error adding the new credentials: $e", activity)
     }
 }
}

/**
* Creates credentials in the format used by the OTBR HTTP server. See its documentation in
* https://github.com/openthread/ot-br-posix/blob/main/src/rest/openapi.yaml#L215
*/
fun createJsonCredentialsObject(newCredentials: ThreadNetworkCredentials): JSONObject {
 val jsonTimestamp = JSONObject()
 jsonTimestamp.put("Seconds", System.currentTimeMillis() / 1000)
 jsonTimestamp.put("Ticks", 0)
 jsonTimestamp.put("Authoritative", false)

 val jsonQuery = JSONObject()
 jsonQuery.put(
   "ActiveDataset",
   BaseEncoding.base16().encode(newCredentials.activeOperationalDataset)
 )
 jsonQuery.put("PendingTimestamp", jsonTimestamp)
 // delay of committing the pending set into active set: 10000ms
 jsonQuery.put("Delay", 10000)

 Timber.d(jsonQuery.toString())

 return jsonQuery
}

//(...)

var response = OtbrHttpClient.createJsonHttpRequest(
 URL("http://$ipAddress:$otbrPort$otbrDatasetPendingEndpoint"),
 activity,
 OtbrHttpClient.Verbs.PUT,
 jsonQuery.toString()
)

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    (...)
    <!-- usesCleartextTraffic needed for OTBR local unencrypted communication -->
    <!-- Not needed for Thread Module, only used for HTTP -->
    <uses-feature
    (...)
        android:usesCleartextTraffic="true">

    <application>
    (...)
    <!-- GPS automatically downloads scanner module when app is installed -->
    <!-- Not needed for Thread Module, only used for scanning QR Codes -->
    <meta-data
        android:name="com.google.mlkit.vision.DEPENDENCIES"
        android:value="barcode_ui"/>
    </application>
</manifest>

// Thread Network
implementation 'com.google.android.gms:play-services-threadnetwork:16.0.0'
// Thread QR Code Scanning
implementation 'com.google.android.gms:play-services-code-scanner:16.0.0'
// Thread QR Code Generation
implementation 'com.journeyapps:zxing-android-embedded:4.1.0'
// Needed for using BaseEncoding class
implementation 'com.google.guava:guava:31.1-jre'

// Thread Network Module
import com.google.android.gms.threadnetwork.ThreadNetworkCredentials
import com.google.android.gms.threadnetwork.ThreadBorderAgent
import com.google.android.gms.threadnetwork.ThreadNetwork

// Conversion of credentials to/fro Base16 (hex)
import com.google.common.io.BaseEncoding

// HTTP
import java.io.BufferedInputStream
import java.io.InputStream
import java.net.HttpURLConnection
import java.net.URL
import java.nio.charset.StandardCharsets

// Co-routines for HTTP calls
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.withContext
import kotlinx.coroutines.CoroutineDispatcher
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.launch


// JSON
import org.json.JSONObject

// Logs
import timber.log.Timber

// mDNS/SD
import android.net.nsd.NsdServiceInfo

// QR Code reader / writer
import com.google.mlkit.vision.barcode.common.Barcode
import com.google.mlkit.vision.codescanner.GmsBarcodeScannerOptions
import com.google.mlkit.vision.codescanner.GmsBarcodeScanning
import com.google.zxing.BarcodeFormat
import com.google.zxing.MultiFormatWriter
import com.journeyapps.barcodescanner.BarcodeEncoder
